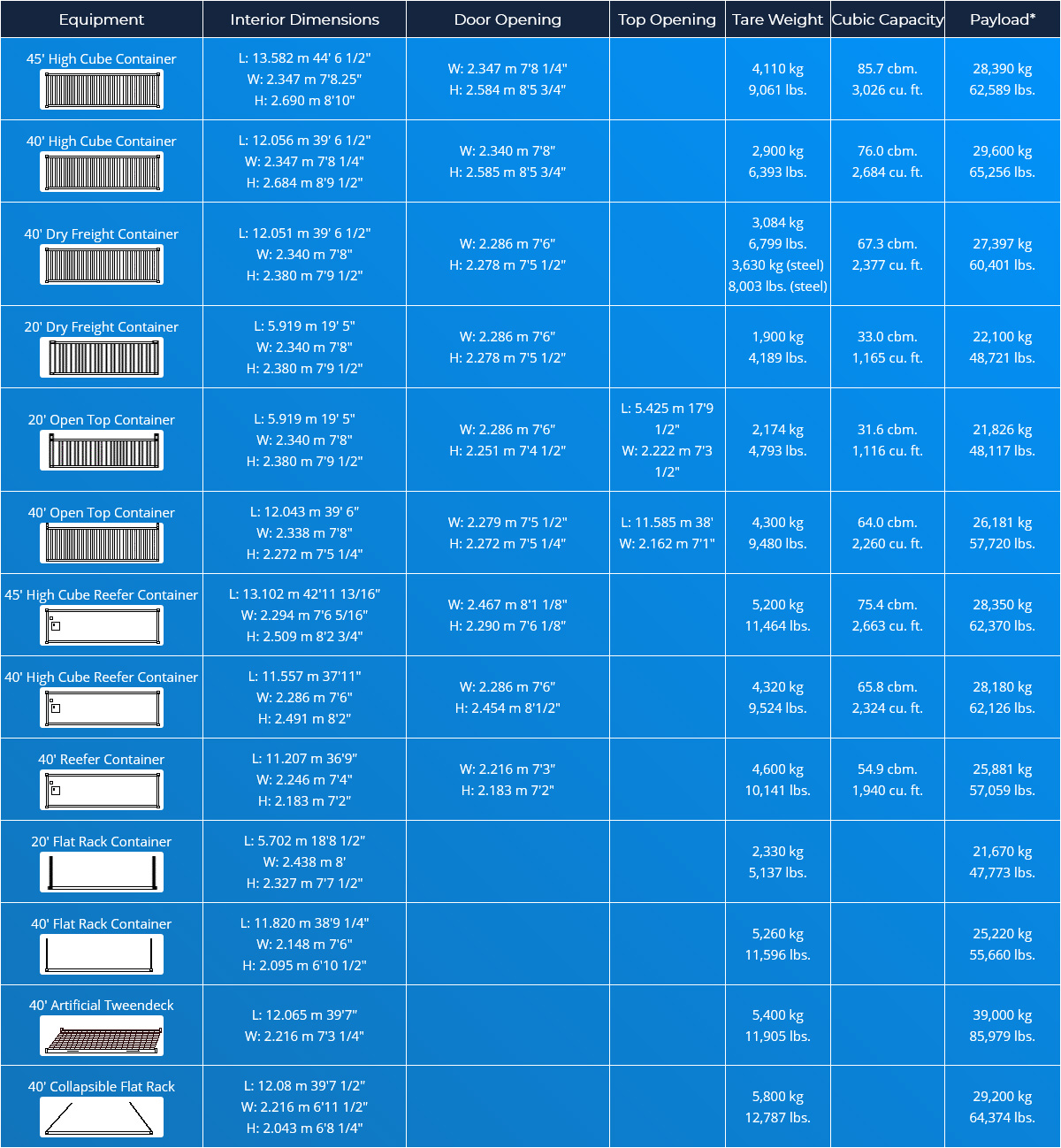

45' High Cube Container

L: 13.582 m 44' 6 1/2"
W: 2.347 m 7'8.25"
H: 2.690 m 8'10"

W: 2.347 m 7'8 1/4"
H: 2.584 m 8'5 3/4"

4,110 kg
9,061 lbs.

85.7 cbm.
3,026 cu. ft.

28,390 kg
62,589 lbs.

40' High Cube Container

L: 12.056 m 39' 6 1/2"
W: 2.347 m 7'8 1/4"
H: 2.684 m 8'9 1/2"

W: 2.340 m 7'8"
H: 2.585 m 8'5 3/4"

2,900 kg
6,393 lbs.

76.0 cbm.
2,684 cu. ft.

29,600 kg
65,256 lbs.

40' Dry Freight Container

L: 12.051 m 39' 6 1/2"
W: 2.340 m 7'8"
H: 2.380 m 7'9 1/2"

W: 2.286 m 7'6"
H: 2.278 m 7'5 1/2"

3,084 kg
6,799 lbs.
3,630 kg (steel)
8,003 lbs. (steel)

67.3 cbm.
2,377 cu. ft.

27,397 kg
60,401 lbs.

20' Dry Freight Container

L: 5.919 m 19' 5"
W: 2.340 m 7'8"
H: 2.380 m 7'9 1/2"

W: 2.286 m 7'6"
H: 2.278 m 7'5 1/2"

1,900 kg
4,189 lbs.

33.0 cbm.
1,165 cu. ft.

22,100 kg
48,721 lbs.

20' Open Top Container

L: 5.919 m 19' 5"
W: 2.340 m 7'8"
H: 2.380 m 7'9 1/2"

W: 2.286 m 7'6"
H: 2.251 m 7'4 1/2"

L: 5.425 m 17'9 1/2"
W: 2.222 m 7'3 1/2"

2,174 kg
4,793 lbs.

31.6 cbm.
1,116 cu. ft.

21,826 kg
48,117 lbs.

40' Open Top Container

L: 12.043 m 39' 6"
W: 2.338 m 7'8"
H: 2.272 m 7'5 1/4"

W: 2.279 m 7'5 1/2"
H: 2.272 m 7'5 1/4"

L: 11.585 m 38'
W: 2.162 m 7'1"

4,300 kg
9,480 lbs.

64.0 cbm.
2,260 cu. ft.

26,181 kg
57,720 lbs.

45' High Cube Reefer Container

L: 13.102 m 42'11 13/16"
W: 2.294 m 7'6 5/16"
H: 2.509 m 8'2 3/4"

W: 2.467 m 8'1 1/8"
H: 2.290 m 7'6 1/8"

5,200 kg
11,464 lbs.

75.4 cbm.
2,663 cu. ft.

28,350 kg
62,370 lbs.

40' High Cube Reefer Container

L: 11.557 m 37'11"
W: 2.286 m 7'6"
H: 2.491 m 8'2"

W: 2.286 m 7'6"
H: 2.454 m 8'1/2"

4,320 kg
9,524 lbs.

65.8 cbm.
2,324 cu. ft.

28,180 kg
62,126 lbs.

40' Reefer Container

L: 11.207 m 36'9"
W: 2.246 m 7'4"
H: 2.183 m 7'2"

W: 2.216 m 7'3"
H: 2.183 m 7'2"

4,600 kg
10,141 lbs.

54.9 cbm.
1,940 cu. ft.

25,881 kg
57,059 lbs.

20' Flat Rack Container

L: 5.702 m 18'8 1/2"
W: 2.438 m 8'
H: 2.327 m 7'7 1/2"

2,330 kg
5,137 lbs.

21,670 kg
47,773 lbs.

40' Flat Rack Container

L: 11.820 m 38'9 1/4"
W: 2.148 m 7'6"
H: 2.095 m 6'10 1/2"

5,260 kg
11,596 lbs.

25,220 kg
55,660 lbs.

40' Artificial Tweendeck

L: 12.065 m 39'7"
W: 2.216 m 7'3 1/4"

5,400 kg
11,905 lbs.

39,000 kg
85,979 lbs.

40' Collapsible Flat Rack

L: 12.08 m 39'7 1/2"
W: 2.216 m 6'11 1/2"
H: 2.043 m 6'8 1/4"

5,800 kg
12,787 lbs.

29,200 kg
64,374 lbs.
